Project Information
33kV Single Circuit OHL Wooden Pole network in Kharir Oil field facility (55 km)
Total E & P 33kV SC OHL - Lattice OHL transitions to special wood poles to cross the road

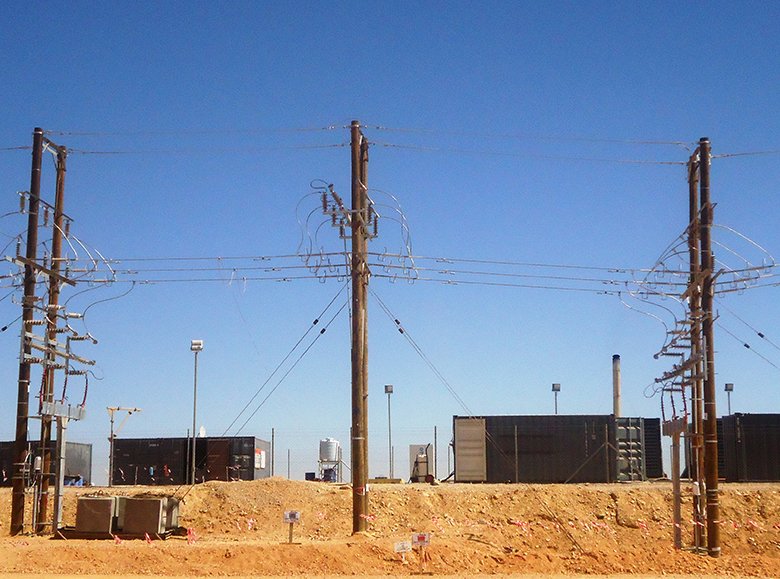

Total E & P 33kV SC OHL - Special wood pole structures with Single cable Feed and Switches

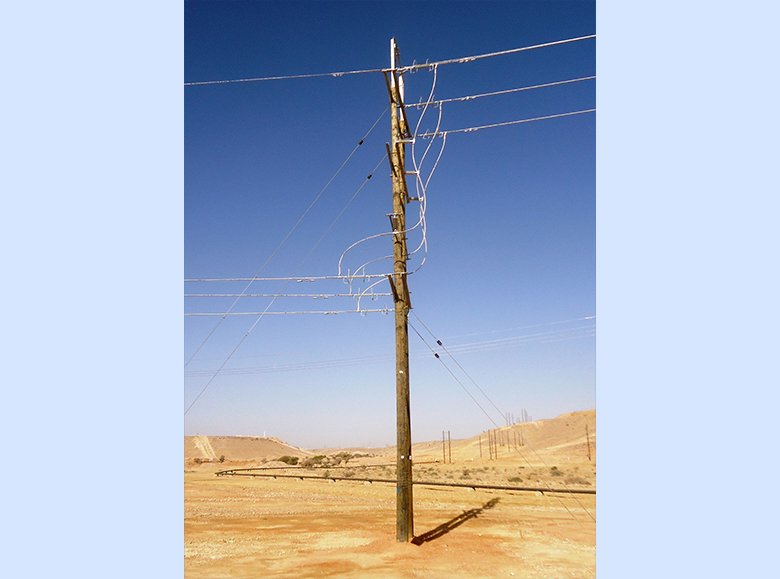

Total E & P 33kV SC OHL - Road crossing special wood pole structure

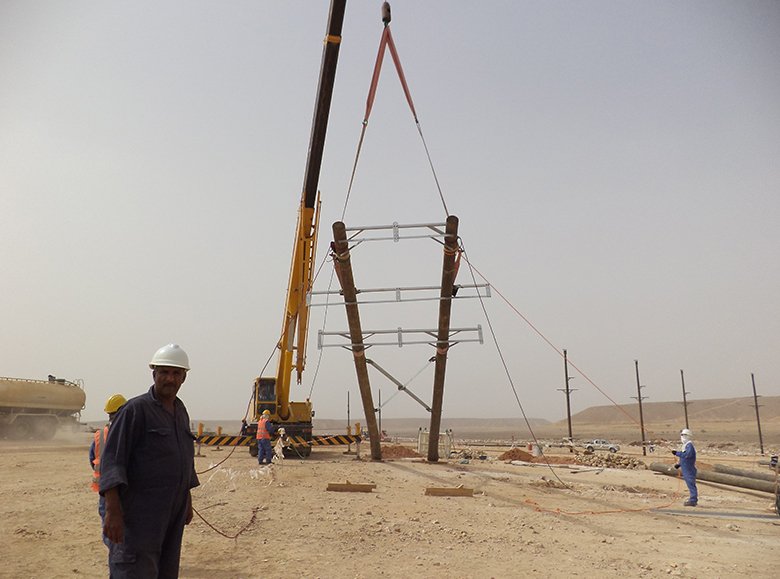

Total E & P 33kV SC OHL - Wood pole Erection in progress
Client
Total E & P
Scope performed by Enfras
Detailed Engineering Services for 33kV OHL Network Wood Poles and three circuit lattice towers
- > Three circuit Lattice tower design, Downdropper arrangements, Erection drawing
- > Sag Tension Calculation, Line Profile & Stringing chart
- > Structural and Foundational design calculations of various pole structures including special wood pole & spliced wood pole structures
- > Shop drawings of various pole structures (cross arms) & BoM
Customer/Main Contractor
HAWK International & TOTAL
Project Location/ Country
Republic of Yemen
