Project Information
132kV Double circuit OHL Dhaid - Madam (33 km)

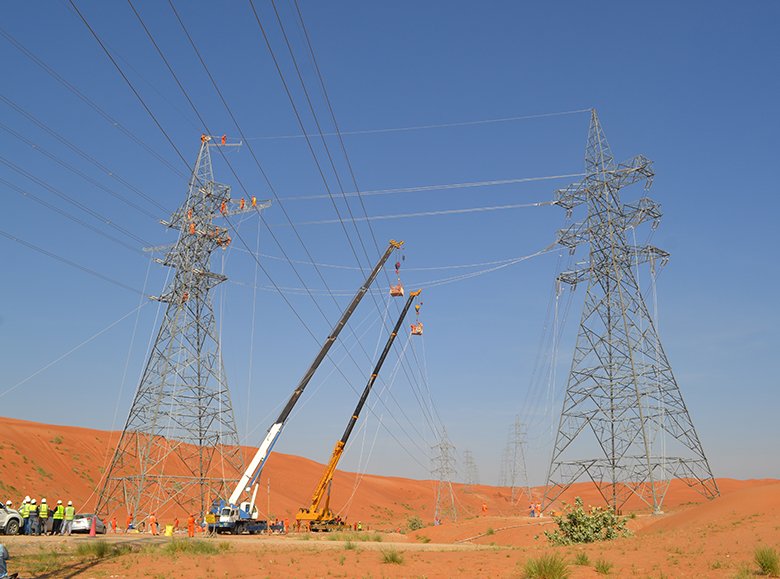

EtihadWE 132kV DC OHL - Large Angle Tower during stringing
EtihadWE 132kV DC OHL - Stringing over existing 33kV OHL under outage
EtihadWE 132kV DC OHL - Sagging in progress

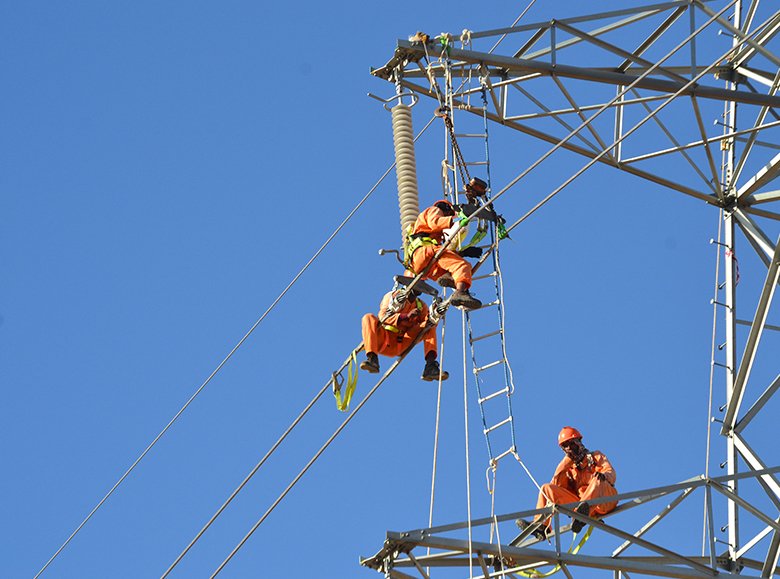

EtihadWE 132kV DC OHL - Clipping in progress

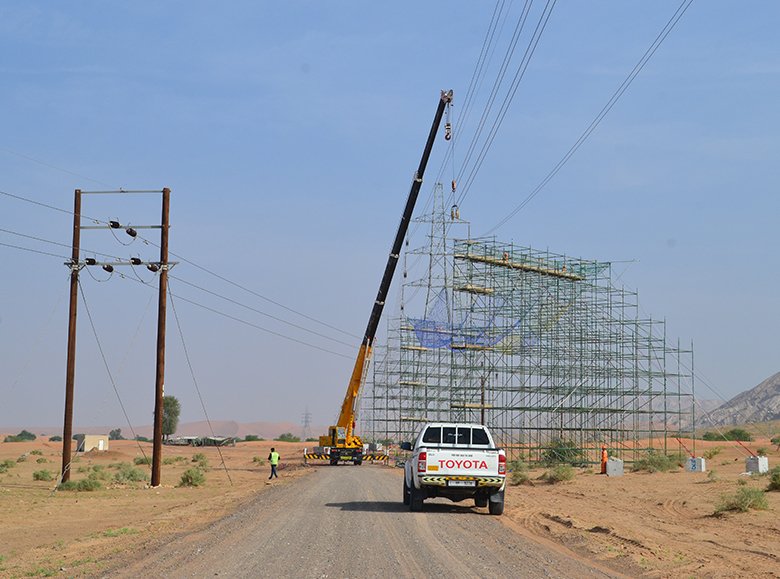

EtihadWE 132kV DC OHL - Stringing over existing 11kV OHL with scaffolding
Client
EtihadWE
Scope performed by Enfras
Complete Design and Engineering Services pertaining to New 132kV OHLWorks
- > Route finalization, Sag Tension Calculations and Tower spotting on PLS CADD
- > Access road proposals based on terrain data
- > New Suspension Tower Design
- > As Built Tower validations for implementing in the project
- > Tower Assembly and shop drawings generation
- > Tower Earthing and Earth Mat designs
- > Cable Ladder : Structural & Foundation designs
- > OHL Line parameter calculations and Insulation Coordination study
Customer/Main Contractor
Centaur E.M.Co. L.L.C., Dubai
Project Location/ Country
United Arab Emirates
